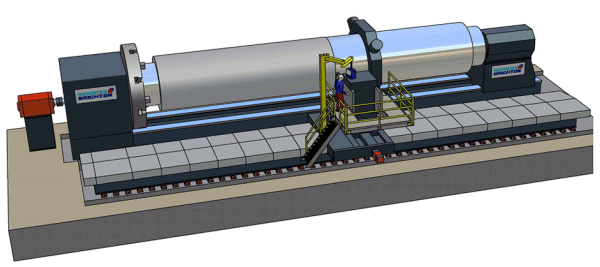

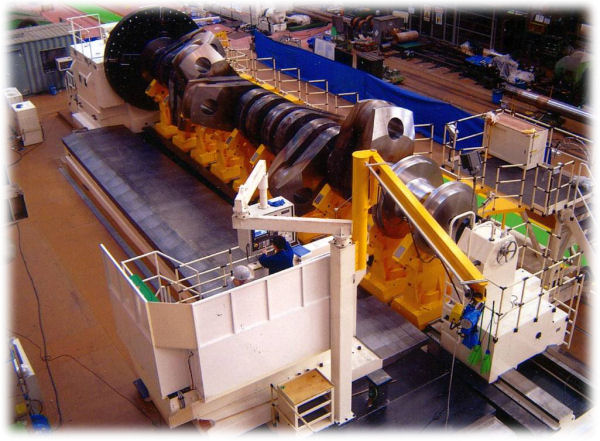

Specifications & Range |
Model No. |
DL-Series |
Unit |
(Imperial) |
Center height from guideways |
1100 - 3600 |
mm |
(43" - 142") |
Height of machine axis from ground floor |
1500 - 4100 |
mm |
(59" - 161") |
Max. swing over saddle |
1500 - 7000 |
mm |
(59" - 276") |
Min. swing over saddle |
0 |
mm |
(0) |
Max. workpiece turning length (Z-axis) |
5 - 30 |
m |
(16' - 98') |
Max. weight between centers |
100 - 500 |
ton |
|
Driving power of AC main motor |
120 - 360 |
kW |
(161 - 482 HP) |
Face plate speed (C-axis) |
0.55 - 180 |
rpm |
|
Normal speed |
8 - 22 |
rpm |
|
Max. torque on face plate |
75 - 190 |
kNm |
|
Max. cutting force |
16 |
ton |
|
Tool carrier cross travel (X-axis) |
1000 - 2000 |
mm |
(39" - 79") |
Turning diameter in 1st step |
7000 - 3000 |
mm |
(276" - 118") |
Turning diameter in 2st step |
4000 - 0 |
mm |
(157" - 0") |
Machine length |
17 - 47 |
m |
(56' - 154') |
